ALINX FPGA SOM AC7A200: with AMD Artix 7 Industrial Grade Module

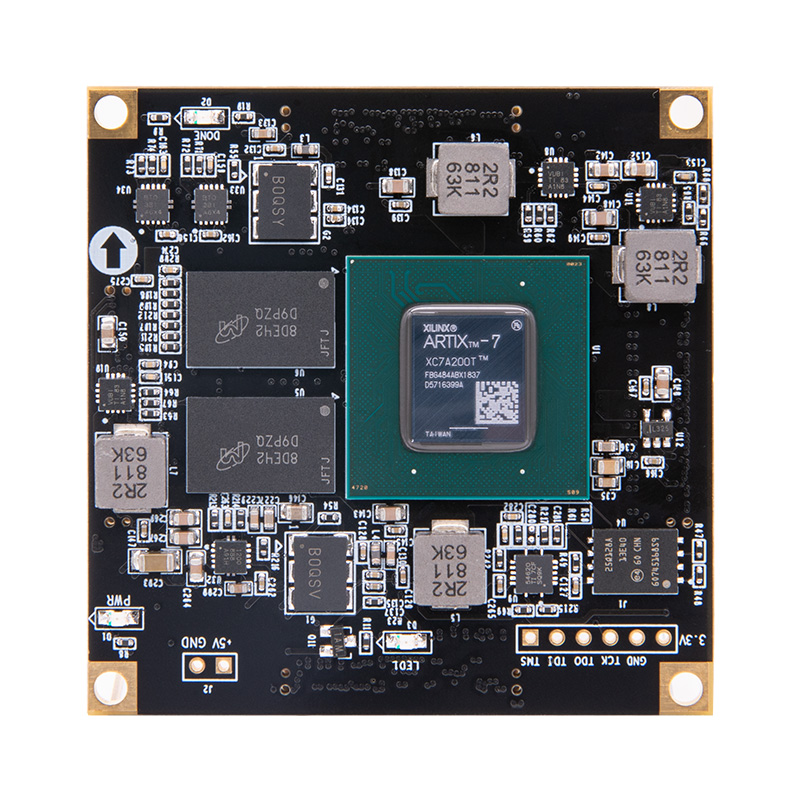

ALINX SoM AC7A200, based on the AMD Artix 7 XC7A200T-2FBG484I, composed of FPGA + 2 DDR3 + QSPI FLASH, including all the basic components of hardware. It is suitable for high-speed data communication, video image processing, high-speed data acquisition etc.


Key Features and Benefits

  • FPGA: XC7A200T-2FBG484I
  • 1GB DDR3, 32bit
  • 16MB FLASH
  • Logic Cells 215,360
  • Look-Up Tables (LUTs) 33,650
  • CLB Flip-Flops 269,200
  • DSP Slices 740
  • Block RAM 13,140kb
  • High-speed GTP x 4
  • PCIE 2.0 x 4
  • 180 IOs, 100 Voltage Adjustable IOs
  • 48 Pairs LVDS
  • Speed Grade -2
  • Industrial Grade
  • Working Temperature -40 ℃ to 85 ℃
  • Size: 2.36 * 2.36 inch
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With

What's Included

  • ALINX SoM AC7A200 Industrial Grade Module
