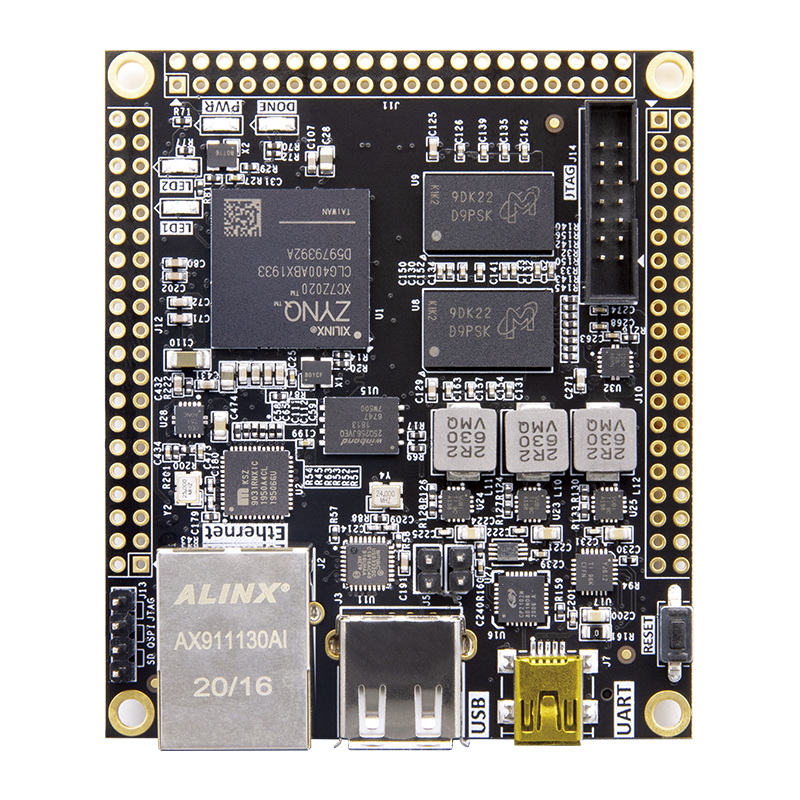

ALINX FPGA SOM AC7020C with an AMD Zynq 7000 SoC Industrial Grade Module

The ALINX AC7020C: with an AMD SoC Zynq 7000 XC7Z020 FPGA module includes all the basic components of hardware. Supports embedded processing with Dual ARM Cortex-A9 core processors. FPGA core board is the minimum system, USB power supply. Run Linux operation system.


Key Features and Benefits

  • FPGA: XC7Z020-2CLG400I
  • ARM Cortex™-A9
  • PS Terminal 1GB DDR3, 32bit
  • 32MB FLASH
  • Logic Cells 85K
  • Look-Up Tables (LUTs) 53,200
  • CLB Flip-Flops 106,400
  • DSP Slices 220
  • Block RAM 4.9Mb
  • 94 IOs, 8 MIOs
  • 47 Pairs LVDS
  • 100 Voltage Adjustable IOs
  • AD Converter x 2, 1Mbps
  • Speed Grade -2, Industrial Grade
  • Working Temperature -40 ℃ to 85 ℃
  • Size: 2.95 * 2.52 inch

What's Included

  • 8G TF Card and Card Reader
  • AC7020C FPGA module
  • Mini USB Cable
