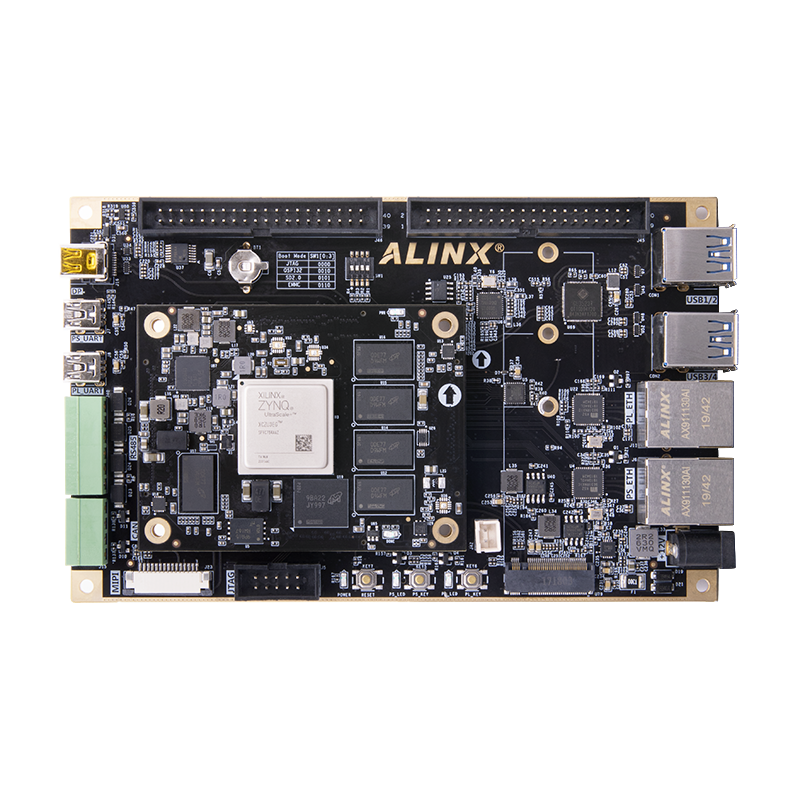

  3. ALINX AXU3EGB: with an AMD Zynq UltraScale+ MPSoC ZU3EG FPGA development Kit board,
Click to Enlarge

ALINX AXU3EGB: with an AMD Zynq UltraScale+ MPSoC ZU3EG FPGA development Kit board,

by: Alinx Electronic Limited

ALINX AXU3EG or AXU3EGB: featuring the AMD Zynq UltraScale+ MPSoC ZU3EG FPGA development board, the SoM Core board is the smallest system, mainly composed of XCZU3EG-1SFVC784I + 5 DDR4 + eMMC + 1 QSPI FLASH. The Carrier board expands a wealth of peripheral interfaces for the core board, including 1 SATA M.2 interface, 1 DP output interface, 4 USB3.0 interfaces, 2 Gigabit Ethernet interfaces, 2 UART interfaces, 1 SD card interface, 2*40-pin Expansion Connectors for Modules, 2 CAN bus interfaces, 2 RS485 interfaces, 1 MIPI interface, Keys and LEDs. High-speed data exchange and transmission, data storage, pre-verification and post-application of data processing, video transmission processing, deep learning, artificial intelligence and industrial control, is a professional ZYNQ development platform. Suitable for students, engineers and other groups engaged in the development of MPSoCs.

  • Price: $449.00
  • Part Number: AXU3EG or AXU3EGB
  • Device Support:
    • Zynq UltraScale+ MPSoC
  • Partner Tier: Premier
  • View Partner Profile
Request Information

Key Features and Benefits

  • FPGA: AMD Zynq UltraScale+ MPSoCs, XCZU3EG-1SFVC784I
  • ARM Cortex™-A53 x4 1.2Ghz, Cortex-R5 x2 500Mhz
  • 4GByte DDR4, 64bit, Data Speed 2400Mbps for PS Side
  • 1GByte DDR4, 64bit, Data Speed 2132Mbps for PL Side
  • 8GB eMMC, 256Mb QSPI FLASH, EEPROM SATA M.2 interface
  • SATA M.2 interface
  • DP interface, Supports 4K x 2K@30Fps Output
  • 4*USB 3.0 Host, Speed up to 5.0 Gb/s
  • 2*Gigabit Ethernet Interface
  • 2*USB Uart Interface
  • SD Card Slot
  • 2*40-pin Expansion Connectors for Modules
  • CAN and 485 Communication Interface
  • MIPI Camera Interface
  • JTAG Debug Interface
  • RTC; Temperature Sensor
  • LEDs; Keys; DIP switch; Customized Fan

What's Included

  • 12V 3A DC Adaptor
  • ALINX AXU3EG FPGA development board
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • Customized 30W Fan (Fixed on the Board)
  • Mini USB Cable
  • TF Card and Card Reader
  • Transparent Protection Board (Fixed on the Board)
