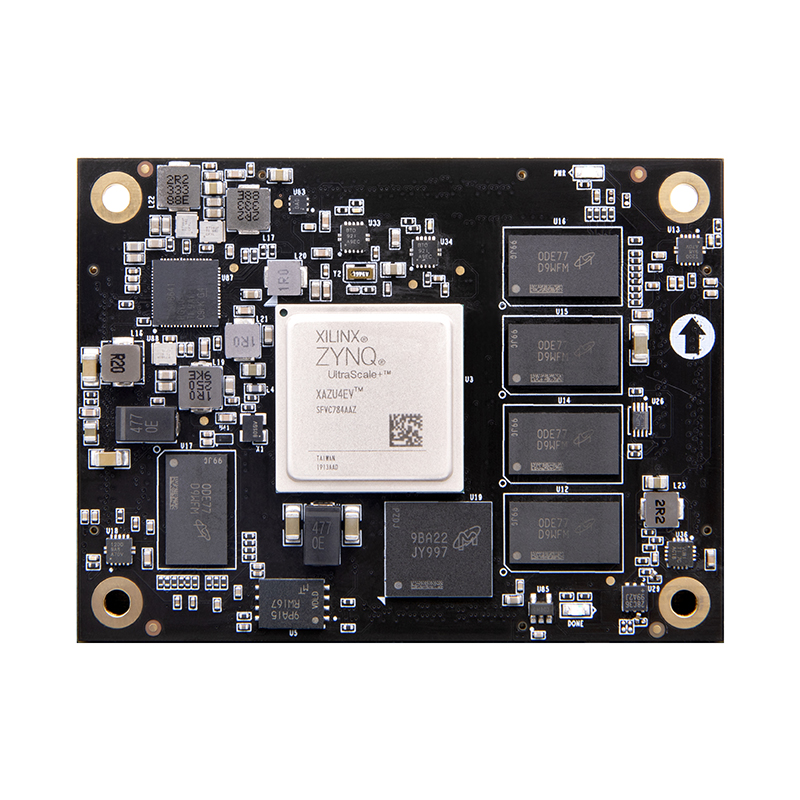

ALINX SoM ACU4EV: AMD Zynq UltraScale MPSoC ZU4EV AI Industrial Grade Module

by: Alinx Electronic Limited

ALINX SoM ACU4EV based an an AMD Zynq UltraScale MPSoC ZU4EV AI Industrial Grade Module is the smallest system, mainly composed of XCZU4EV-1SFVC784I + 5GB DDR4 + eMMC + 1 QSPI FLASH. 4*120 Pin Panasonic Connectors, Reserved expansion IOs (PS PCIe Gen2 x4 2x USB3.0; Sata 3.1; DisplayPort; 4x Tri-speed Gigabit Ethernet; PL 4x GTH 12.5Gb/s; PL IO: 96 HP I/Os,84 HD I/Os PL PCIe Gen3 x4, Video Codec H.264 / H.265)

  • Price: $528.00
  • Part Number: ACU4EV
  • Device Support:
    • Zynq UltraScale+ MPSoC
  • Partner Tier: Premier
  • View Partner Profile
Request Information

Key Features and Benefits

  • FPGA: AMD Zynq UltraScale+ MPSoCs, XCZU4EV-1SFVC784I
  • ARM Cortex™-A53 x4 1.5Ghz, Cortex-R5 x2 600Mhz
  • 4GByte DDR4, 64bit, Data Speed 2400Mbps for PS Side
  • 1GByte DDR4, 64bit, Data Speed 2132Mbps for PL Side
  • 8GB eMMC, 256Mb QSPI FLASH
  • Logic Cells 192K
  • 4*120 Pin Panasonic Connectors, Reserved expansion IOs (PS PCIe Gen2 x4 2x USB3.0; Sata 3.1; DisplayPort; 4x Tri-speed Gigabit Ethernet; PL 4x GTH 12.5Gb/s; PL IO: 96 HP I/Os,84 HD I/Os PL PCIe Gen3 x4, Video Codec H.264 / H.265)
  • Industrial Grade, -40°C to 85°C
  • Size: 3.15x2.36 inch

What's Included

  • ALINX SoM ACU4EV FPGA Module
