  3. ALINX FPGA SOM ACU5EV with AMD Zynq UltraScale+ MPSOC XCZU5EV AI Industrial Grade Module
Click to Enlarge

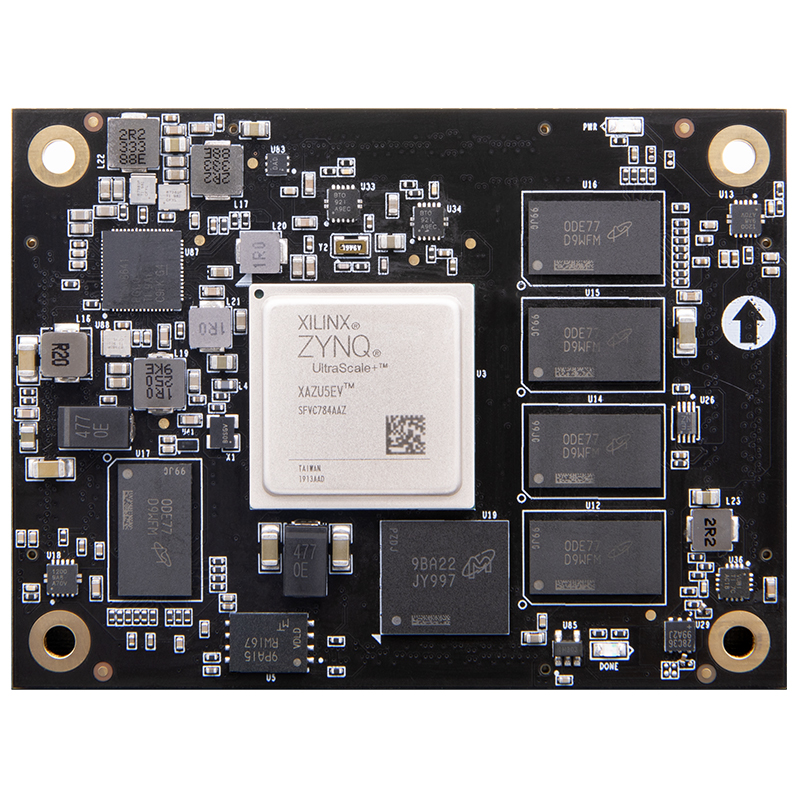

ALINX FPGA SOM ACU5EV with AMD Zynq UltraScale+ MPSOC XCZU5EV AI Industrial Grade Module

by: Alinx Electronic Limited

ALINX SoM ACU5EV, based on an AMD Zynq UltraScale+ MPSoC XCZU5EV AI Industrial Grade Module is the smallest system, mainly composed of XCZU5EV-2SFVC784I + 5GB DDR4 + 8GB eMMC + 32MB QSPI FLASH. 4*120 Pin Panasonic Connectors, Reserved expansion IOs (PS PCIe Gen3 x 4; 2 x USB3.0; Sata 3.1; Display Port; 4x Tri-speed Gigabit Ethernet; PL 4x GTH 12.5Gb/s; PL IO: 96 HP I/Os, 84 HD I/Os PL PCIe Gen3 x4, Video Codec H.264 / H.265)

  • Price: $660.00
  • Part Number: ACU5EV
  • Device Support:
    • Zynq UltraScale+ MPSoC
  • Partner Tier: Premier
  • View Partner Profile
Request Information

Key Features and Benefits

  • XCZU5EV- 2SFVC784I
  • ARM Quad-core Cortex™-A53 1.333GHz
  • ARM Dual-core Cortex-R5 533MHz
  • Mali™-400MP2 GPU
  • PS 4GB DDR4, 64bit
  • PL 1GB DDR4, 16bit
  • 8GB eMMC, 32MB FLASH
  • Logic Cells 256K
  • PS PCIe Gen2 x4
  • 2x USB3.0, Sata 3.1, Display Port
  • 4x Tri-speed Gigabit Ethernet
  • PL 4x GTH 12.5Gb/s
  • PL IO: 96 HP I/Os, 84 HR I/Os
  • PL PCIe Gen3 x4, Video Codec H.264 / H.265
  • Industrial Grade, -40°C to 85°C
  • Size: 3.15 x 2.36 inch

What's Included

  • ALINX SoM ACU5EV MPSoC Module
