ALINX SoM ACU7EVC: AMD Zynq UltraScale+ MPSOC AI XCZU7EV Industrial Grade Module

by: Alinx Electronic Limited

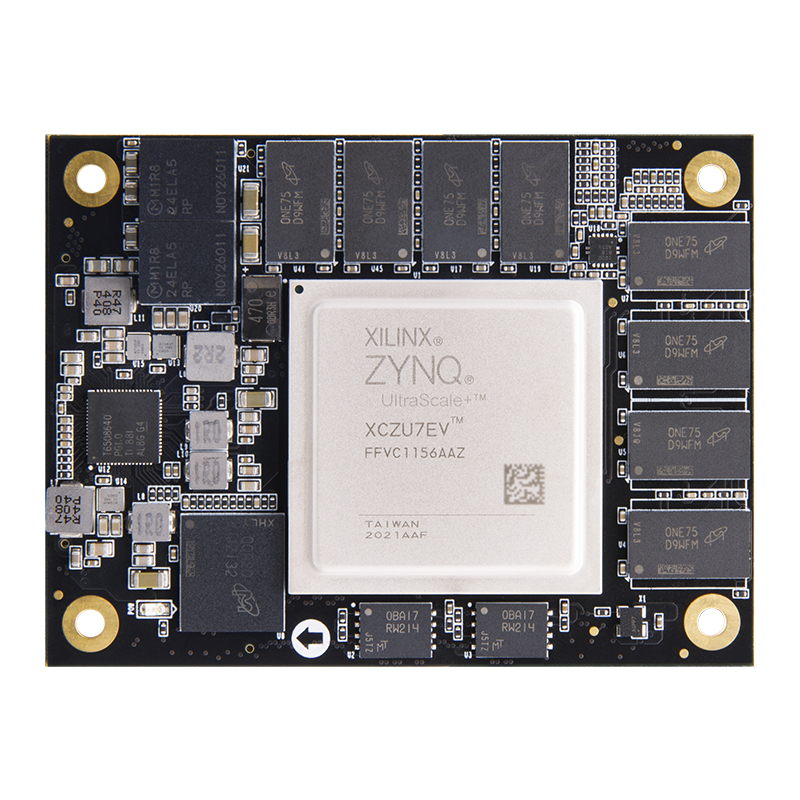

ALINX SoM ACU7EVC: AMD zynq UltraScale+ MPSOC AI XCZU7EV Industrial Grade System on Module is the smallest system, mainly composed of XCZU7EV-2FFVC1156I + PS 4GB DDR4 + PL 4GB DDR4 + 8GB eMMC + 64MB FLASH. 4*120 Pin Panasonic Connectors, Reserved expansion IOs (PS PCIe Gen2 x4 , 2x USB3.0, Sata 3.1, DisplayPort , 4x Tri-speed Gigabit Ethernet ; PL 16x GTH 12.5Gb/s; PL IO: 119 HP I/Os, 71 HD I/Os ; PL PCIe Gen3 x8, Video Codec H.264 / H.265)

  • Price: $1,189.00
  • Part Number: ACU7EVC
  • Device Support:
    • Zynq UltraScale+ MPSoC
  • Partner Tier: Premier
  • View Partner Profile
Request Information

Key Features and Benefits

  • XCZU7EV- 2FFVB1156I
  • ARM Quad-core Cortex™-A53 1.333GHz
  • ARM Dual-core Cortex-R5 533MHz
  • Mali™-400MP2 GPU
  • PS 4GB DDR4, 64bit
  • PL 4GB DDR4, 64bit
  • 8GB eMMC, 64MB FLASH
  • Logic Cells 504K
  • PS PCIe Gen2 x4
  • 2x USB3.0, Sata 3.1, DisplayPort
  • 4x Tri-speed Gigabit Ethernet
  • PL 16x GTH 12.5Gb/s
  • PL IO: 119 HP I/Os, 71 HD I/Os
  • PL PCIe Gen3 x8, Video Codec H.264 / H.265
  • Industrial Grade, -40°C to 85°C
  • 3.15x2.36 inch

What's Included

  • ALINX SoM ACU7EVC FPGA Module
