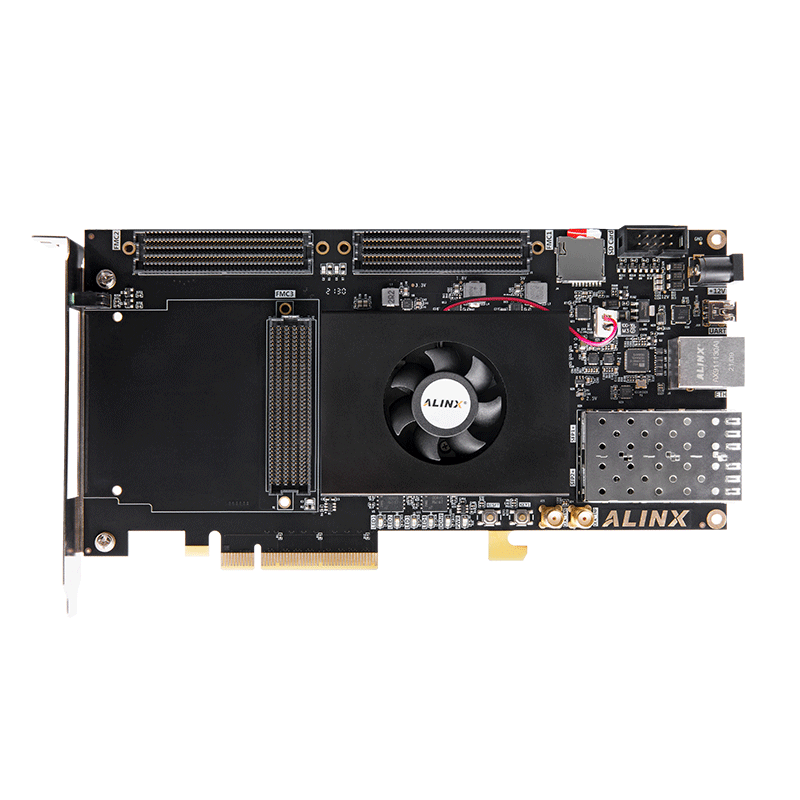

  3. ALINX AXKU041 with an AMD Kintex UltraScale XCKU040 PCIE3.0x8 FPGA Development KIt Board
Click to Enlarge

ALINX AXKU041 with an AMD Kintex UltraScale XCKU040 PCIE3.0x8 FPGA Development KIt Board

by: Alinx Electronic Limited

ALINX AXKU041 based on the AMD Kintex UltraScale XCKU040 PCIE3.0 FPGA Development Board. The AXKU041 industrial FPGA board includes 4GB high-speed DDR4, 64MB QSPI Flash. The AXKU041 FPGA development board expands the rich peripheral interface, including four PCIE3.0 interfaces, 10G optical SFP interfaces, three FMC expansion interfaces, Gigabit Ethernet Interfaces, SAM Interfaces etc.

Request Information

Key Features and Benefits

  • FPGA: AMD Kintex UltraScale FPGA, XCKU040-2FFVA1156I
  • 4GB DDR4, 64bit, 2400Mbps; 64MB QSPI Flash
  • 2 * SFP Fiber Interfaces, Each up to 12.5 Gb/s
  • 2 * Standard FMC LPC Expansion Port
  • 1 * Standard FMC HPC Expansion Port
  • PCIe 3.0X8 Interface
  • Gigabit Ethernet Interface
  • Integrated USB Uart Interface, JTAG, Micro SD Card Slot
  • Customized Cooling Fan, Maximum Cooling Power Consumption 30W
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With

What's Included

  • 12V 3A DC Adaptor
  • ALINX Brand Customized Cooling fan (Fixed on the Board)
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • AXKU041 FPGA Development Board
  • Mini USB Cable
  • PCIe Protection Fence
