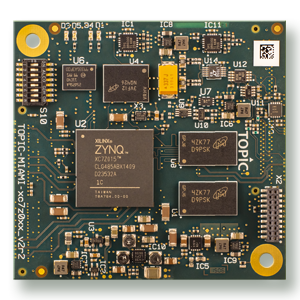

MIAMI System on Module
The Miami System on Module (SoM) supports the AMD Zynq 7015 and 7030 System on Chips (SoC). It is a highly integrated and compact commercial-off-the-shelf solution for today’s high performance embedded systems. The module combines a high performance, ARM dual-core Cortex A9-based application processor with FPGA logic in a single chip. The SoM integrates all system components required to bring the board level system alive including memories, power supply, connectivity and debugging facilities.
The Miami SoM provides a best in class platform for balancing both performance and power, making a perfect solution for applications that require high processing power, high speed interfaces, a high level of reliability, the ability to optimize system interfaces, and perform real-time analytics and control.
Key Features and Benefits
- Debug support
- Dimensions: 60x65 mm
- High performance SAMTEC board-to-board connectors
- IEEE1588v2 and IEEE 802.3az support
- Industrial temperature range (-40 °C +85 °C)
- On-board high efficiency power supplies
- Selectable boot source
- Serial I/O, including SPI, I2C, UART
- Software selectable carrier board I/O voltages
- Support for Gigabit Ethernet (PHY)
- Support for PCI-Express (4 lanes)
- Support for SATA3
What's Included
- Industrial temp (-40°C to 85°C)
- Long product lifecycle
- Low Power operation with 32-bit wide LPDDR3-533, 512 MB
- Main-line Linux distribution support
- NAND flash
- Network connectivity: 10/100/1000M Ethernet controller
- QSPI Flash, 64 MB
- SD-Card interface
- Single chip provides high bandwidth connectivity between PS and PL
- USB 2.0 high-speed On-the-Go/Host/Device interfaces
- Xilinx Zynq-7015 based System on Module Miami http://www.topicembeddedproducts.com/products/miami
