  3. FMC to iPASS Adapter
Click to Enlarge

FMC to iPASS Adapter

by: Dgtronix

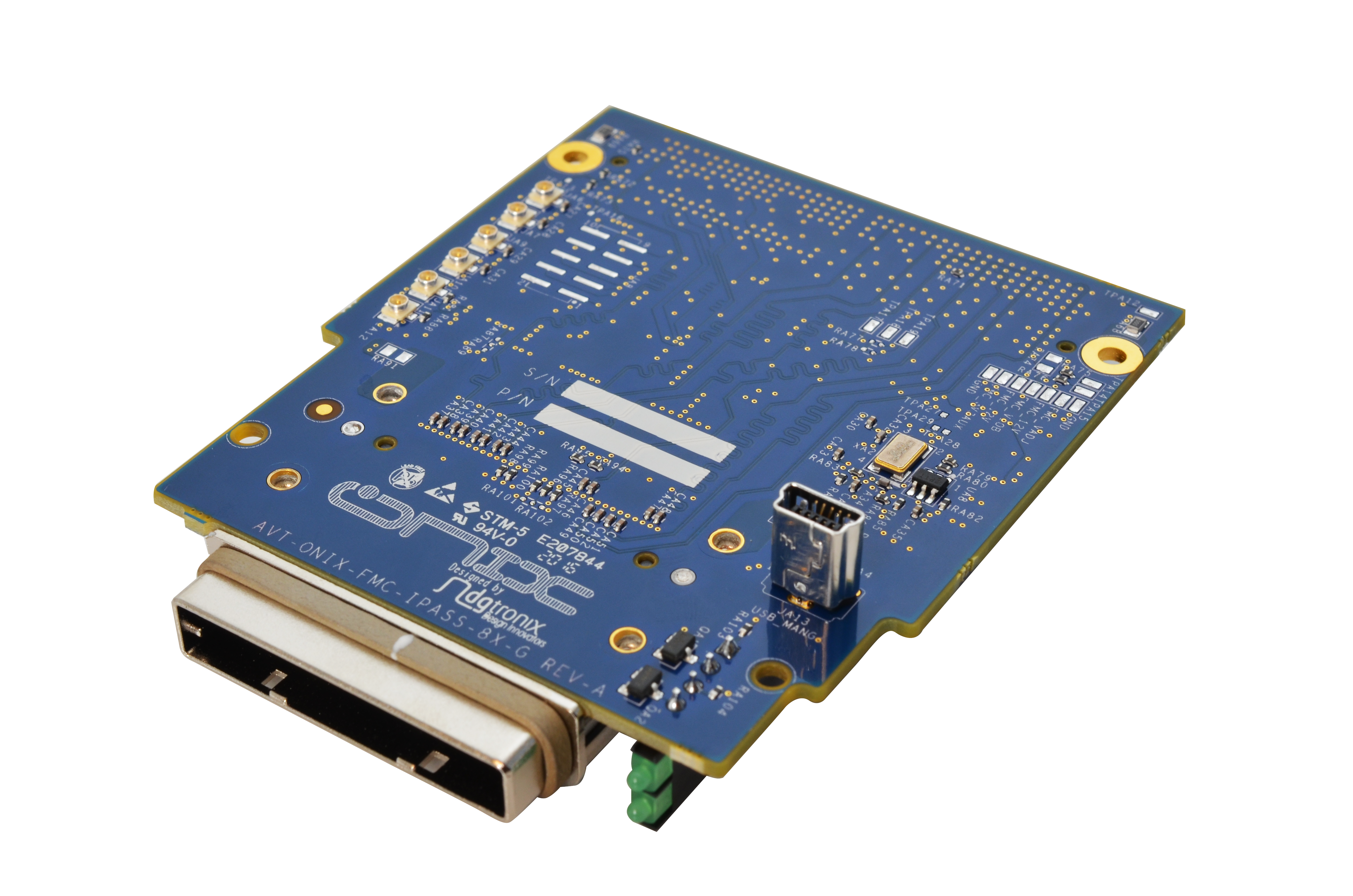

The iPass interface supports the various industry standards for high-speed, multi-lane internal and external systems, such as: PCIe (PCI Express) up to Gen3. SAS (Serial Attached SCSI). SATA (Serial ATA). 10GbE. InfiniBand. The adapter contains additional peripheral interfaces for easy management and debugging. Features: VITA 57.1 FMC HPC connector. 8 x lanes up to 14Gbps for iPASS interface. 2 x u.FL connector for GTH clock. 4 x u.FL connector for GTH lane (TX and RX). 2 x u.FL connector for external clock. 10-pin header. 2 x UART interface (via Transceiver). 1 x SPI interface (via Transceiver). Front Panel LEDs. On board clock oscillator for GTH ref clock (optional). Tested with industry boards and with the Onix ASIC Prototyping and boards, including: ZCU208 ZCU111 KCU705 KCU105 VCU118 ONIX-VU440-2

  • Part Number: ONIX-FMC-IPASS-8X
  • Device Support:
    • Virtex-7
    • Kintex-7
    • Kintex UltraScale
    • Zynq-7000
    • Virtex UltraScale
  • Partner Tier: Select
  • View Partner Profile
Buy from Partner
Request Information

Key Features and Benefits

  • On board clock oscillator for GTH ref clock (optional)
  • Front Panel LED’s
  • 1x SPI interface (via Transceiver)
  • 2x UART interface (via Transceiver)
  • 10pin Header for User
  • 2x u.FL connector for User clock
  • 4x u.FL connector for GTH lane (TX and RX)
  • 2x u.FL connector for GTH clock
  • 8x lanes up to 14Gbps for iPASS interface
  • VITA 57.1 FMC HPC connector

What's Included

  • ONIX FMC to IPASS x8 Adapter
