alveo debug kit

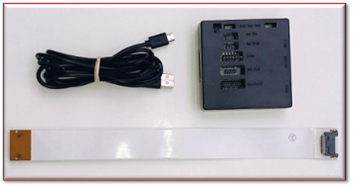

Alveo Debug Kit
Description
The Alveo™ debug kit (ADK) is the second generation card maintenance and debugging kit, superseding the Alveo programming cable for new cards. Improved capabilities include:
- GPIO and analog test points
- Multiple UARTs
- Multiple JTAG interfaces
- Third-party tool activation
Supported Alveo Products
- U45N
- X3522 / X3522PV

programming cable

Alveo Programming Cable
Description

The Alveo Programmable Cable provides development access for Alveo cards that utilize the maintenance connector. The cable provides micro-USB support from a host PC to the Alveo card maintenance connector. For more information, see the Alveo Programming Cable User Guide.

^{Special adapter is included in Alveo Programming Cable box to support Alveo U25 SmartNIC Data Center Accelerator Card.}
Supported Alveo Products
- U25
- U45N
- U50
- U55C

elongated usb cable

Alveo Elongated USB Cable
Description

U200/U250 Micro-USB connector location requires elongated USB for proper connection on Active cards due to blocking from heat spreader. Elongated USB cables can be used for both active and passive cards, but is a must have for active cards.
Supported Alveo Products

Alveo right angle power adaptor

Alveo Right Angle Power Adaptor
Description

The Aux power connector on Alveo™ U200/U250/U280 Active card configuration is located on the top side of the card, a straight-on cable can prevent vertically mounted slot servers from closing. In this case a right angle adapter required.
Supported Alveo Products
- U200 (Active) / U200 (Passive)
- U250 (Active) / U250 (Passive)
- U280
- U55C

usb cable

Alveo USB Cable
Description

USB Cable connects USB ‘A’ Male to Micro USB ‘B’ cable for Alveo AMD Alveo™ V80 and U55C accelerator cards.
Supported Alveo Products
- V80
- U55C
