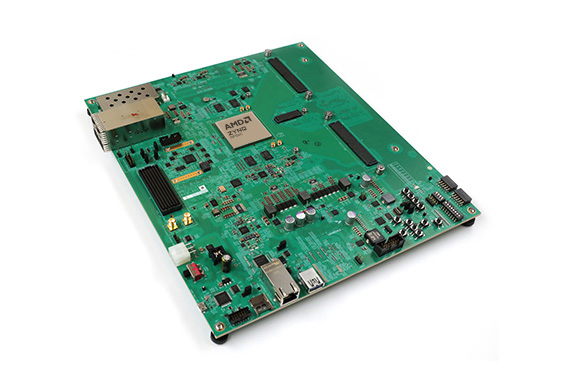

Zynq UltraScale+ RFSoC ZCU216 Evaluation Kit
by: AMD
Equipped with the industry’s only single-chip adaptable radio device, the Zynq™ UltraScale+™ RFSoC ZCU216 evaluation kit, is the ideal platform for both rapid prototyping and high-performance RF application development.
Overview
Product Description
Equipped with the industry’s only single-chip adaptable radio platform, the Zynq™ UltraScale+™ RFSoC ZCU216 Evaluation Kit is the ideal platform for both rapid prototyping and high-performance RF application development.
Featuring the Zynq UltraScale+ RFSoC Gen 3 ZU49DR, the ZCU216 evaluation kit supports direct RF sampling of sub-6GHz bands utilizing 16T16R high speed RF-DACs and RF-ADCs.
In addition to the excellent RF converter technology in the ZCU49DR device, the ZCU216 kit provides add-on cards, a wide range of connectivity options, and comprehensive development tools and IPs to help users to develop cutting-edge RF designs such as:
- 5G sub-6GHz massive-MIMO radio
- 5G mmWave intermediate frequency (IF) transceiver
- Fixed wireless access
- Digital phased array radar
- Terrestrial satellite communications
- Spectrum analyzers
- High-speed RF testers
Key Features
Reference Design and Add-on Cards for Fast Evaluation and Prototyping
- Integrated RF design examples
- XM650 16T16R N79 band loopback add-on card for quick loopback test
- XM655 16T16R breakout add-on card for in-depth performance measurements
- CLK104 RF clock add-on card for internal (up to 1.2GHz) and external (up to 10GHz) reference clocking
Essential On-Board Features for Broad Application Development
- DDR4 DIMM – 4GB, 64-bit, 2,666MT/s, attached to programmable logic (PL)
- DDR4 SODIMM – 4GB, 64-bit, 2,400MT/s, attached to the processing system (PS)
- I/O expansion options – FPGA Mezzanine Card (FMC+) interfaces, RFMC 2.0 interfaces, and Pmod connections
- High-speed I/Os – 2x2 SFP28 interfaces to support up to 4 SFP/SFP+/zSFP+/SFP28 modules
Featured AMD Devices
Featuring the Zynq UltraScale+ XCZU49DR-2FFVF1760 RFSoC
| 14-bit, 2.5GSPS RF-ADC | 16 |
|---|---|
| 14-bit, 9.85GSPS RF-DAC | 16 |
| Max. RF input Frequency (GHz) | 6 |
| System Logic Cells (K) | 930 |
| Memory (Mb) | 60.5 |
| DSP Slices | 4,272 |
| 33G Transceivers | 16 |
| Maximum I/O Pins | 408 |
Product Information
Board Features
Featuring the Zynq™ UltraScale+™ XCZU49DR-2FFVF1760 RFSoC
| Board Specifications | Value |
|---|---|
| Height | 12.225 inch (31.05 cm) |
| Width | 10.675 inch (27.11 cm) |
| Thickness (+/-5%) | 0.119 inch (0.302 cm) |
| Operating Environmental Temperature | 0◦C to +45◦C |
| Storage Environmental Temperature | -25◦C to +60◦C |
| RF Data Converter | |
| # of 14-bit ADCs | 16 |
| Max Rate (GSPS) | 2.5 |
| # of 14-bit DACs | 16 |
| Max Rate (GSPS) | 9.85 |
| Memory | |
| PS DDR4 | 4GB 64-bit SODIMM |
| PL DDR4 | 8GB 64-bit Component |
| Micro SD Card | 16GB |
| M.2 SATA Connector | Yes |
| QSPI | 2 |
| Communications & Networking | |
| USB (UART/JTAG) | 1 |
| RJ45 | 1 |
| SFP28 | 4 |
| USB 3.0 | 1 |
| Display | |
| DIP Switches | Yes |
| LEDs | Yes (RGB) |
| Push Buttons | Yes |
| Expansion Connectors | |
| FMC+ | 1 |
| Pmod | 2 |
| RFMC 2.0 | 2 |
| Add-on Cards | |
| XM650 | 1 |
| XM655 | 1 |
| CLK104 | 1 |
| Control & I/O | |
| I2C | Yes |
| PMBUS | Yes |
| JTAG PC4 Header | Yes |
| Boot Options | |
| SD Boot | Yes |
| QSPI Boot | Yes |
| JTAG Boot | Yes |
| Power | |
| 12V Wall Adapter | Yes |
| ATX Power Compatible | Yes |
What's Inside the Box
Featuring the Zynq™ UltraScale+™ XCZU49DR-2FFVF1760 RFSoC
Resources
Design Tools
| Name | Description | License Type |
|---|---|---|
| Vivado™ Design Suite: System Edition | The AMD Vivado Design Suite is a revolutionary IP and system centric design environment built from the ground up to accelerate the design for all programmable devices. | Node locked and device-locked to the Zynq™ UltraScale+™ XCZU49DR RFSoC with one year of updates |
| AMD SDK | Full suite of tools for embedded software development and debug targeting AMD platforms. | Included |
| PetaLinux Tools | Configure, build, and deploy Linux operating system to AMD platforms. | Included |
| Board Support Packages (BSP) | Pre-configured boot loaders, system images, and bitstream | Included |
Intellectual Property
| Name | Description | License Type |
|---|---|---|
| Memory Interface Generator (MIG) | MIG is a free software tool used to generate memory controllers and interfaces for AMD FPGAs. | Included |
Additional Tools, IP and Resources
| Provider Name | Product Category | Item | Description |
|---|---|---|---|
| Open Source | Software Tool | TeraTerm | One of many possible terminal emulators used for serial connection from your PC to the evaluation kit. |
| AMD | Software Tool | Quick Start Guide | Quick Start guide - ZCU216 RF Data Converter Evaluation Tool |
| RF Evaluation Tool | ZCU216 RF Data Converter Evaluation Tool Software package download | ||
| AMD | Software Tool | Power Advantage Tool | The Power Advantage Tool is a demo designed to showcase the power features of the Zynq UltraScale+ RFSoC device |
| AMD | Software Tool | RF Analyzer | RF Analyzer user interface used to drive and analyze any evaluation board. |
| AMD | Evaluation Board S-Parameter data | ZCU216_Eval_Board_SPAR.zip | S-Parameter de-embedding of ZCU216 board to XM655 connector |
