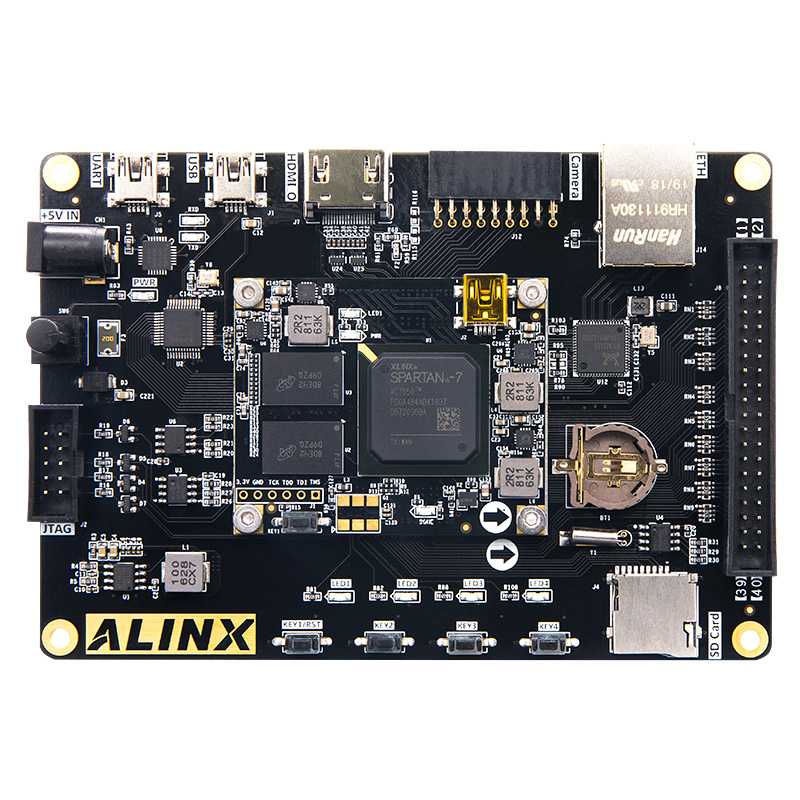

ALINX AX7050 with an AMD Spartan 7 XC7S50 FPGA Development Kit Board

by: Alinx Electronic Limited

ALINX AX7050: with an AMD Spartan 7 XC7S50 FPGA Development board, “SOM AC7050B module + Carrier Board”, which is convenient to use the SOM core board for secondary development. The AX7050 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, the carrier board with Gigabit Ethernet, HDMI Output, USB2.0, UART, SD Card Slot, JTAG, Camera Interface, 40-Pin Connectors (expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module).

The AX7050 FPGA Board is suitable for high-speed data transmission, video image processing and industrial control, network and USB communication, and pre-verification and post-application of data processing

Request Information

Key Features and Benefits

  • FPGA: AMD Spartan 7 FPGA, XC7S50-1FGGA484I
  • 1GByte DDR3, 32bit, 667Mbps
  • 16Mbyte QSPI Flash
  • 10/100 / 1000M Adaptive Ethernet Interface
  • Camera Interface, Connect to Monocular Camera Module
  • Integrated HDMI, USB, SD Card Slot, EEPROM, UART and Other Common Interfaces
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
  • Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With

What's Included

  • 5V 2A DC Adaptor
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • AX7050 FPGA Development Board
  • Mini USB Cable
  • Transparent Protection Board (Fixed on the Board)
