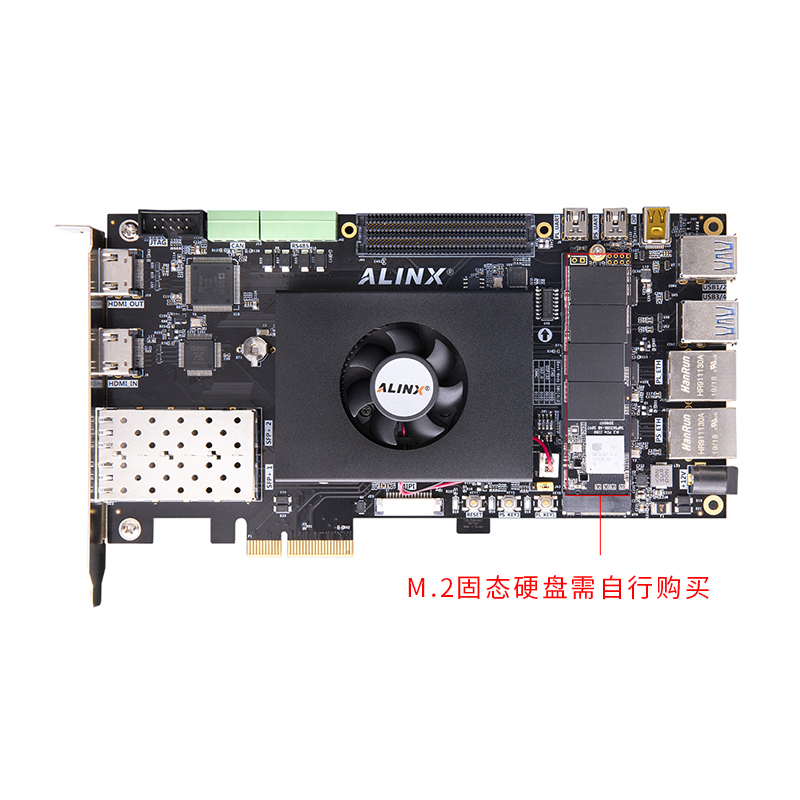

  3. ALINX AXU4EVB-P with an AMD Zynq UltraScale+ MPSoC AI PCIe FPGA development Kit Board
Click to Enlarge

ALINX AXU4EVB-P with an AMD Zynq UltraScale+ MPSoC AI PCIe FPGA development Kit Board

by: Alinx Electronic Limited

ALINX AXU4EVB-P Development Boards & Kits. "SOM ACu4EV module + Carrier Board", "SOM ACu4EV module mainly composed of an AMD Zynq UltraScale+ MPSoC XCZU4EV-1SFVC784I + 5 DDR4 + eMMC + 1 QSPI FLASH. The Carrier board expands a wealth of peripheral interfaces for the core board, including 1 M.2 interface, 1 DP output interface, 4 USB3.0 interfaces, 2 Gigabit Ethernet interfaces, 1 PCIE x2 interface, and 2 optical fibers Interface, 2 UART interfaces, 1 SD card interface, 1 HDMI output interface, 1 HDMI input interface, 1 FMC interface, 2 CAN bus interfaces, 2 RS485 interfaces, 1 MIPI interface, Keys and LEDs.

  • Price: $885.00
  • Part Number: AXU4EV-P or AXU4EVB-P
  • Device Support:
    • Zynq UltraScale+ MPSoC
  • Partner Tier: Premier
  • View Partner Profile
Request Information

Key Features and Benefits

  • FPGA: AMD Zynq UltraScale+ MPSoCs,,XCZU4EV-1SFVC784I
  • ARM Cortex™-A53 x4 1.5Ghz, Cortex-R5 x2 600Mhz
  • 4GByte DDR4, 64bit, Data Speed 2400Mbps for PS Side
  • 1GByte DDR4, 64bit, Data Speed 2132Mbps for PL Side
  • 8GB eMMC, 256Mb QSPI FLASH, EEPROM
  • PCIe Slot, Communication Speed up to 8Gbps
  • FMC LPC Interface; SATA M.2 interface
  • DP interface, Supports 4K x 2K@30Fps Output
  • 4*USB 3.0 Host, Speed up to 5.0Gb/s
  • 2*USB Uart Interface
  • SD Card Slot
  • HDMI Input and Output interface
  • 2-channel SFP Fiber Interfaces, Each up to 12.5Gbps
  • CAN and 485 Communication Interface
  • MIPI Camera Interface
  • JTAG Debug Interface
  • RTC; Temperature Sensor
  • LEDs; Keys; DIP switch; Customized Fan

What's Included

  • 12V 3A DC Adaptor
  • ALINX AXU4EVB-P FPGA development board
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • Customized 30W Fan (Fixed on the Board)
  • Mini USB Cable
  • PCIe Protection Fence
  • TF Card and Card Reader
