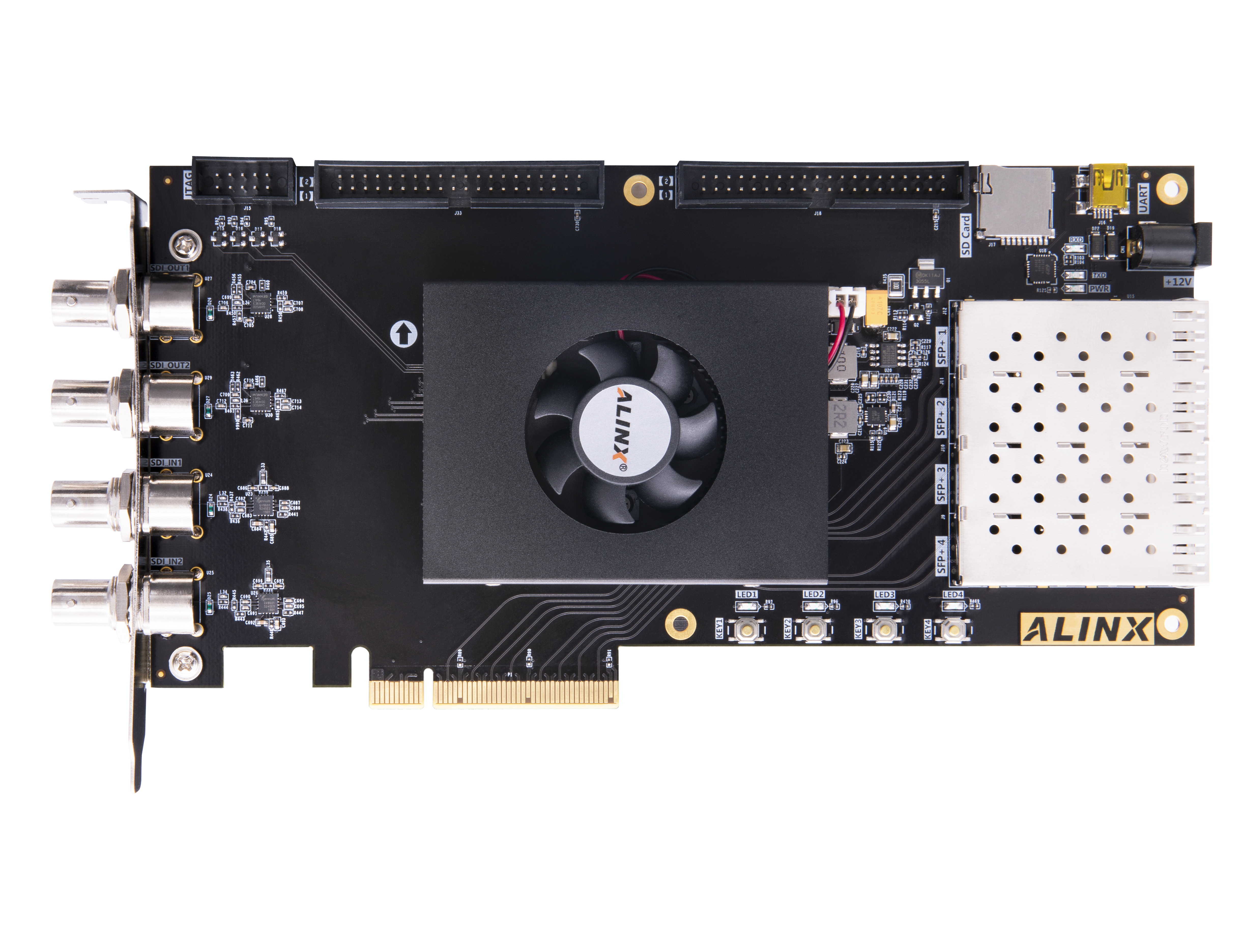

ALINX AV7K300 with an AMD Kintex 7 XC7K325T FPGA Development Kit Board
ALINX AV7K300: based on the AMD Kintex 7 XC7K325T FPGA Development board, “SOM AC7K325B module + Carrier Board”, which is convenient to use the SOM core board for secondary development. The AV7K300 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, the carrier board with 4 * Broadcast-grade HD digital SDI interface, 2 input and output interfaces each. PCIe 2.0 x8, 4*10G SFP+, USB UART, JTAG, TF Cart Slot, 2 * 40-Pin Connectors (expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module). The AV7K325 FPGA Board is Kintex 7 professional FPGA SDI video processing platform.
Key Features and Benefits
- FPGA: AMD Kintex 7 XC7K325T-2FFG900I
- 2GB DDR3, 64bit, 1600Mbps; 16MB QSPI Flash
- 4 * Broadcast-grade HD digital SDI interface, 2 input and output interfaces each
- SFP Fiber Interfaces x4, Each up to 10Gbps
- PCIe 2.0 x8, Single Channel up to 5Gbps
- 2*40-pin Expansion Port for ALINX Brand Modules(Such as AD/DA/Camera/LCD Modules)
- Integrated USB to UART, JTAG, TF Card Slot and Other Common Interfaces
- Customized Cooling Fan, Maximum Cooling Power Consumption 30W
- Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)
- Provide Verilog HDL Demos and Supporting Tutorials, Easier to Get Started With
What's Included
- 12V 3A DC Adaptor
- ALINX Brand Customized Cooling fan (Fixed on the Board)
- ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
- AV7K300 FPGA Development Board
- Mini USB Cable
- PCIe Protection Fence
