  3. Avnet UltraZed-EV Carrier Card
Click to Enlarge

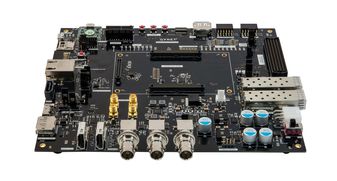

Avnet UltraZed-EV Carrier Card

by: Avnet

The UltraZed-EV Carrier Card supports the UltraZed-EV System-on-Module (SOM), providing easy access to the full 152 user I/O, 26 PS MIO, 4 PS GTR transceivers, and 16 GTH transceivers available from the UltraZed-EV SOM via three Micro Headers. Two 200-pin Micro Headers on the carrier card mate with the UltraZed-EV SOM, connecting 152 of the UltraZed-EV Programmable Logic (PL) I/O along with 16 GTH transceivers to FMC HPC slot, LVDS Touch Panel interface, SFP+ interface, HDMI In/Out, 3G-SDI In/Out, push button switches, DIP switches, LEDs, AMD SYSMON, clock generators, and 2 Digilent Pmod compatible interfaces.

The UltraZed-EV Carrier Card also uses a 120-pin Micro Header to gain access to the UltraZed-EV SOM Processing System (PS) MIO and GTR transceiver pins as well as USB 2.0 and Gigabit Ethernet interfaces. The UltraZed-EV SOM PS MIO and GTR pins are used on the UltraZed-EV Carrier Card to implement the microSD card, PMOD, USB 2.0/3.0, Gigabit Ethernet, SATA host, Display Port, PCIe Root Port, dual USB-UART, user LED and switch, and MAC Address device interfaces.

The UltraZed-EV Carrier Card is a great vehicle for validating the UltraZed-EV SOM and provides an excellent starting point for creating your own UltraZed-EV custom carrier carrier card.

  • Part Number: AES-ZUEV-CC-G
  • Device Support:
    • Zynq UltraScale+ MPSoC
  • Partner Tier: Premier
  • View Partner Profile
Buy from Partner
Request Information

Key Features and Benefits

  • 3 JX micro connectors (2 x 200-pin, 1 x 120-pin)
  • FMC HPC slot
  • Dual SFP+ interfaces
  • 3G-SDI In/Out Interfaces
  • HDMI In/Out Interfaces
  • LVDS Touch Panel interface
  • I2C MAC Address device
  • PC4 JTAG header
  • Digilent USB-JTAG module
  • Differential clock generator
  • SOM reset switch
  • PS VBATT battery
  • PMBus header
  • PS user LED
  • PL user LEDs
  • PL user DIP and Push switches
  • 2 PL PMOD headers
  • RJ45 connector
  • PCIe Gen2 x1 Root Port
  • SATA 3.0 host interface
  • USB 2.0/3.0 connector
  • DisplayPort connector
  • Dual USB-UART
  • PS PMOD header
  • microSD card connector
  • Single UltraZed-EV SOM slot

What's Included

  • 12V AC/DC Power Supply
  • Quick Start Card
  • RJ45 Cable
  • UltraZed-EV Carrier Card
  • UltraZed-EV SOM Mounting Hardware
  • microSD Card
  • microUSB Cable
